1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h
Product Information
It is semi automatic one without dryer. Also can choose fully automatic type with dryer if have enough budget.
Main sections of the paper egg tray machine:
1. pulping system: including the hydrapulper, water pump, pulp pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

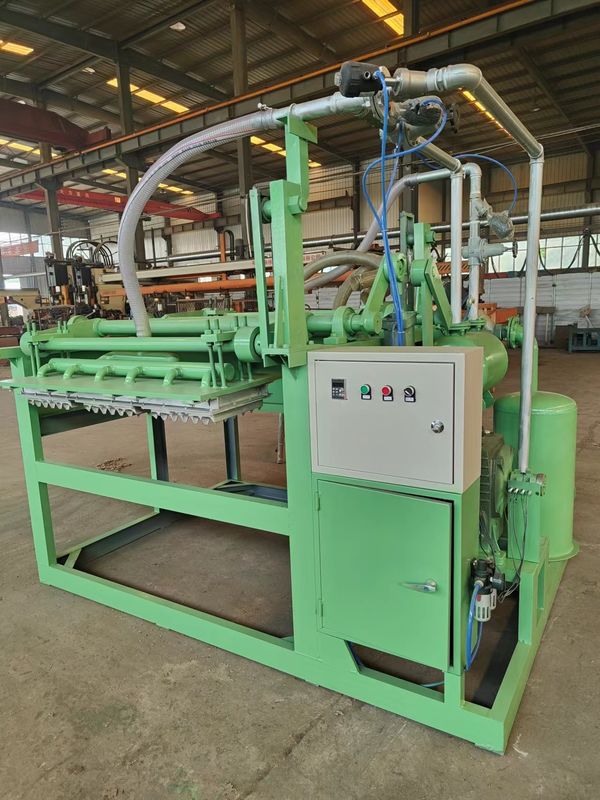

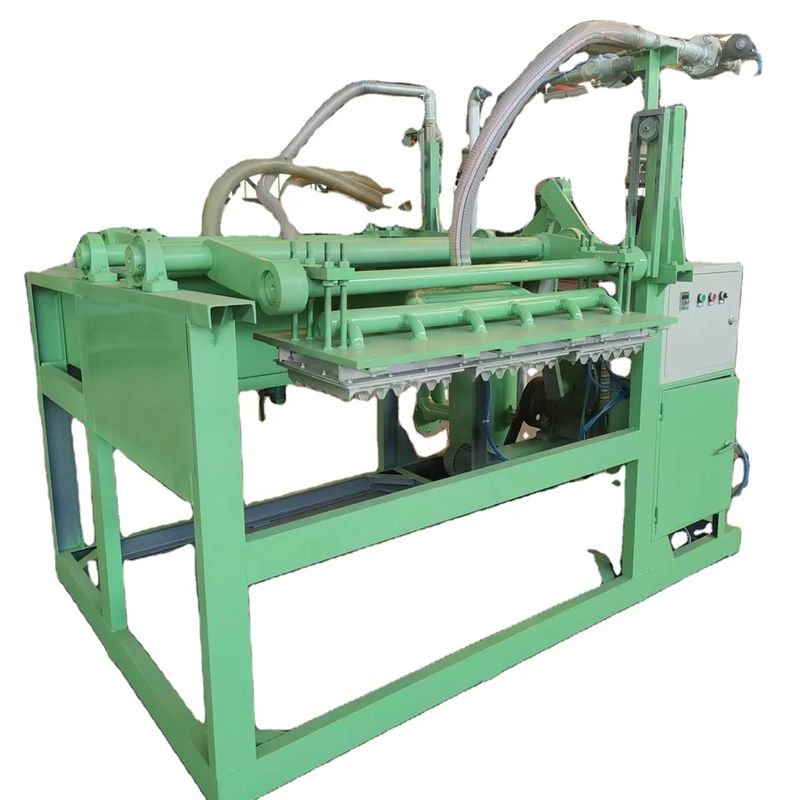

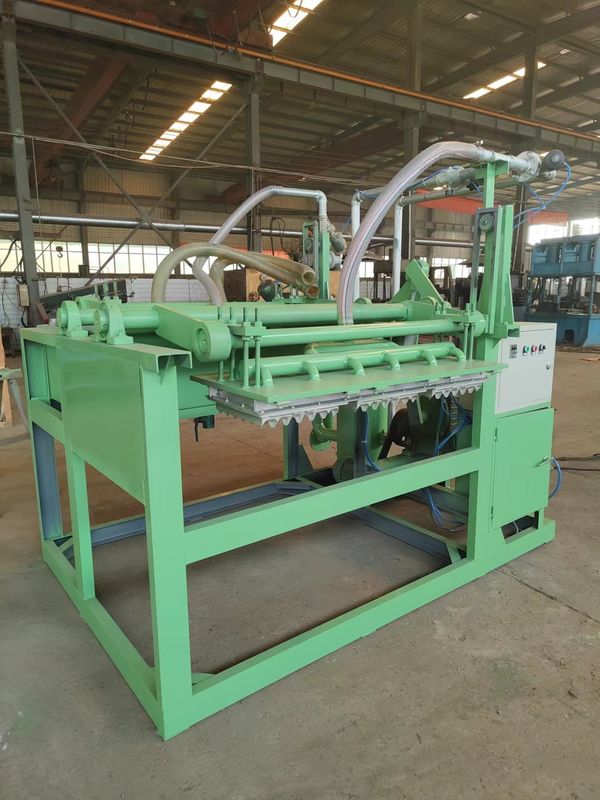

1*3 molds paper egg tray machine 1000pcs/h capacity forming part

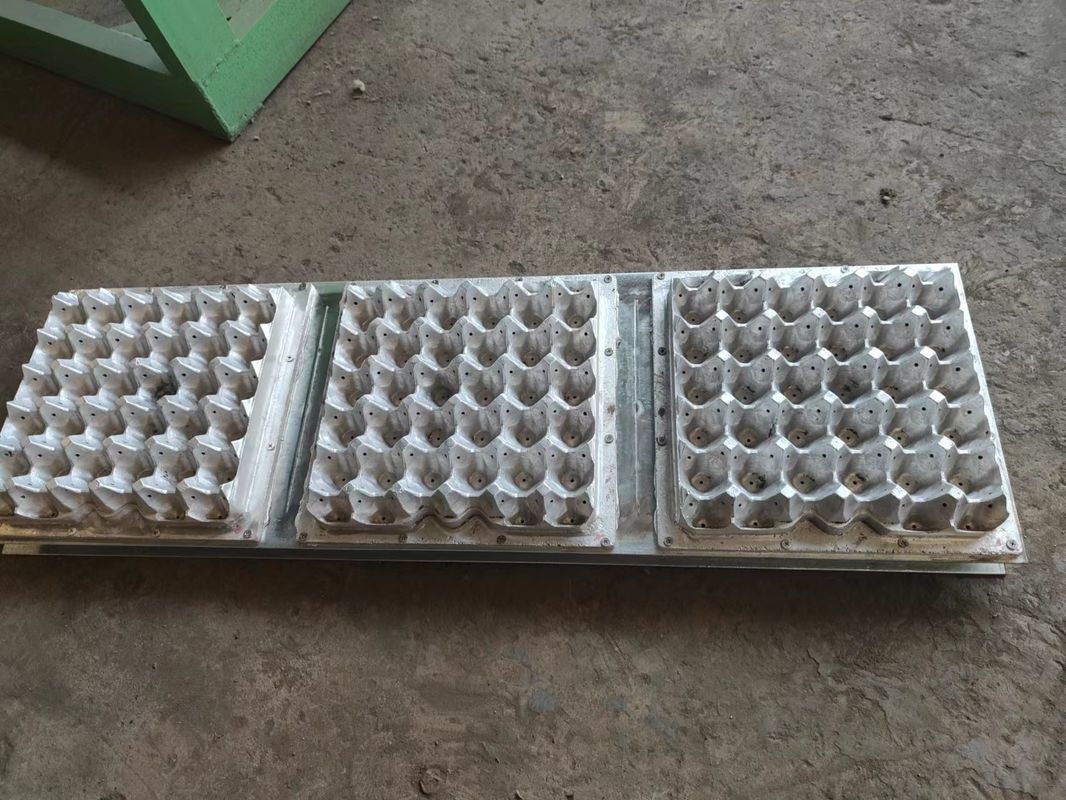

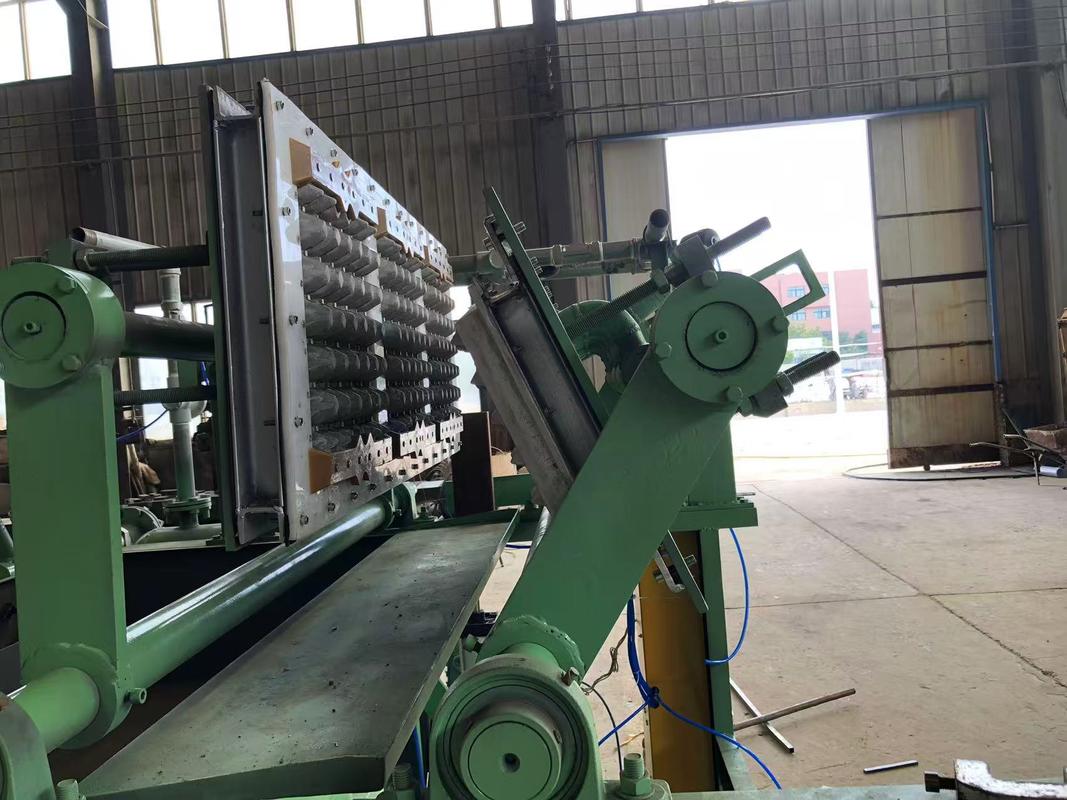

Transferring molds are aluminum material for the egg tray machine
Other type egg tray machine we made
4 molds paper egg tray machine forming system 1300pcs/h capacity
Other Various big capacity egg tray machine we can make
|
Model
|
Capacity
|
Forming machine
|
Drying system
|
Workshop space
|
Rated power
|
|
WY-1500S
|
1500-2000pcs/hr
|
3molds *4faces
|
Single-Layer Metal
|
55m*10m*6m
|
130KW
|
|
Rotary type
|
|
WY-1500M
|
1500-2000pcs/hr
|
3molds *4faces
|
4 Layers
|
35m*10m*6m
|
120KW
|
|
Rotary type
|
Metal
|
|
WY-2000S
|
2000-2500pcs/hr
|
4molds *4faces
|
Single-Layer Metal
|
60m*10m*6m
|
165KW
|
|
Rotary type
|
|
WY-2000M
|
2000-2500pcs/hr
|
4molds *4faces
|
4 Layers
|
40m*10m*6m
|
145KW
|
|
Rotary type
|
Metal
|
|
WY-3000S
|
3000pcs/hr
|
3molds *8faces
|
Single-Layer Metal
|
65m*15m*6m
|
209KW
|
|
Rotary type
|
|
WY-3000M
|
3000pcs/hr
|
3molds *8faces
|
4Layers
|
50m*15m*6m
|
189KW
|
|
Rotary type
|
Metal
|
|
WY-4000S
|
4000pcs/hr
|
4molds *8faces
|
Single-Layer Metal
|
75m*15m*6m
|
239KW
|
|
Rotary type
|
|
WY-4000M
|
4000pcs/hr
|
4molds *8faces
|
4 Layers
|
50m*15m*6m
|
223KW
|
|
Rotary type
|
Metal
|
|
WY-5000S
|
5000pcs/hr
|
5molds *8faces
|
Single-Layer Metal
|
70m*15m*6m
|
298KW
|
|
Rotary type
|
|
WY-5000M
|
5000pcs/hr
|
5molds *8faces
|
4 Layers
|
55m*15m*6m
|
273KW
|
|
Rotary type
|
Metal
|
|
WY-6000S
|
6000pcs/hr
|
6molds *8faces
|
Single-Layer Metal
|
80m*15m*6m
|
365KW
|
|
Rotary type
|
|
WY-6000M
|
6000pcs/hr
|
6molds *8faces
|
4 Layers
|
55m*15m*6m
|
326KW
|
|
Rotary type
|
Metal
|
1000pcs/h capacity 1*3 molds egg tray machine technical data
|
Technical Parameters
|
|
Egg Tray mould quantity
|
1*3pcs
|
Machine volume
|
|
Raw material
|
Waste paper
|
About20GP*1
|
|
Output for egg tray
|
1000pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
The volume of waste paper consumed
|
75kg / hour
|
|
The volume of water consumed
|
0.22ton / hour
|
|
Machine Weight
|
2.5tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
|
Installed power
|
30.5kw
|
|
Motor working efficiency
|
70%
|
|
Dimensions required to install the machine
|
More than L6m*W5m*H3m
|
|
Remarks:
1.Usually, debugging work will be done before shipment.
2.We will offer online installation support for buyers.Either by video or by phone.
3.Buyer needs to build underground type 1 water and 1 pulp pool with dimensions of 1.5mL*1.5mW*1.5m(deep)
|
Payment Terms
|
Delivery Time: 25 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1year after the Egg tray machine received.
|
|
Terms of delivery
|
EXW Jinan, China
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
Our Services
(1)Technical consultation ;
(2)Detailed design of customer workshop ;
(3)Installing and testing the whole production line before shipment;
(4)Training engineers and workers;
(5)Supplying spare part for long time;
(6) Online services anytime.
