Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design

low energy egg tray packaging machine

automatic pulp molding machine with dryer

metallic dryer egg tray machine

Lieu d'origine:

CHINE

Nom de marque:

WANYOU

Numéro de modèle:

Wy-1

Nous contacter
Demandez un devis
Détails du produit
Système de contrôle:
CLu
Matériau de moule:
en plastique ou en aluminium
Capacité de la machine:
1000pcs / h, personnalisé
Taille du plateau à œufs:
295 mm*295 mm 30 œufs
Type de formation:
Aspiration sous vide
Alimentation électrique:
380 V / 50Hz
Produit fini:
Plateau à œufs, carton d'oeuf, plateau de chaussures, plateau d'emballage industriel, platea
Un carburant plus sec:
Gaz naturel, GPL, diesel, charbon, bois, boulettes de biomasse
Mettre en évidence:

low energy egg tray packaging machine

,

automatic pulp molding machine with dryer

,

metallic dryer egg tray machine

Conditions de paiement et d'expédition
Quantité de commande min
1 ensemble
Prix
USD8800/SET
Détails d'emballage
dans le conteneur
Délai de livraison
40 jours ouvrables
Conditions de paiement
T / T, Western Union, Moneygram
Capacité d'approvisionnement
1 jeu par mois
Description du produit

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design


Product Information

There are 2 models for customer to choose, semi automatic one without dryer, fully automatic one with dryer.

Main sections of the paper egg tray machine:

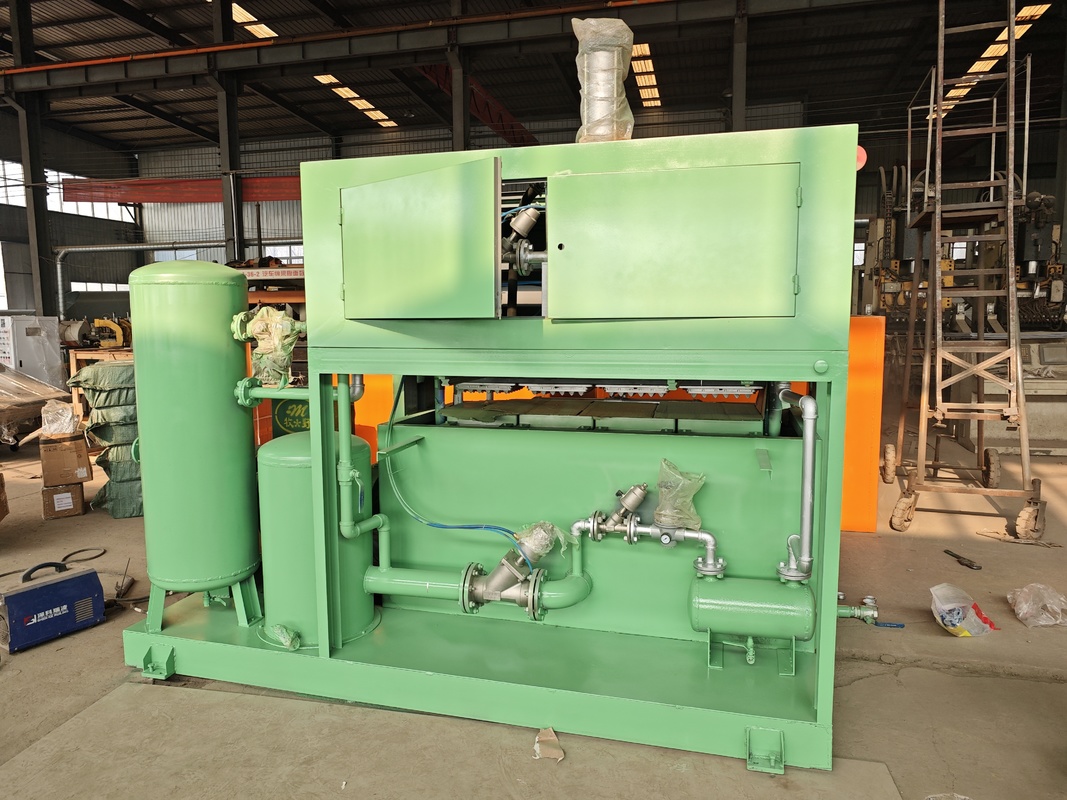

1pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 0

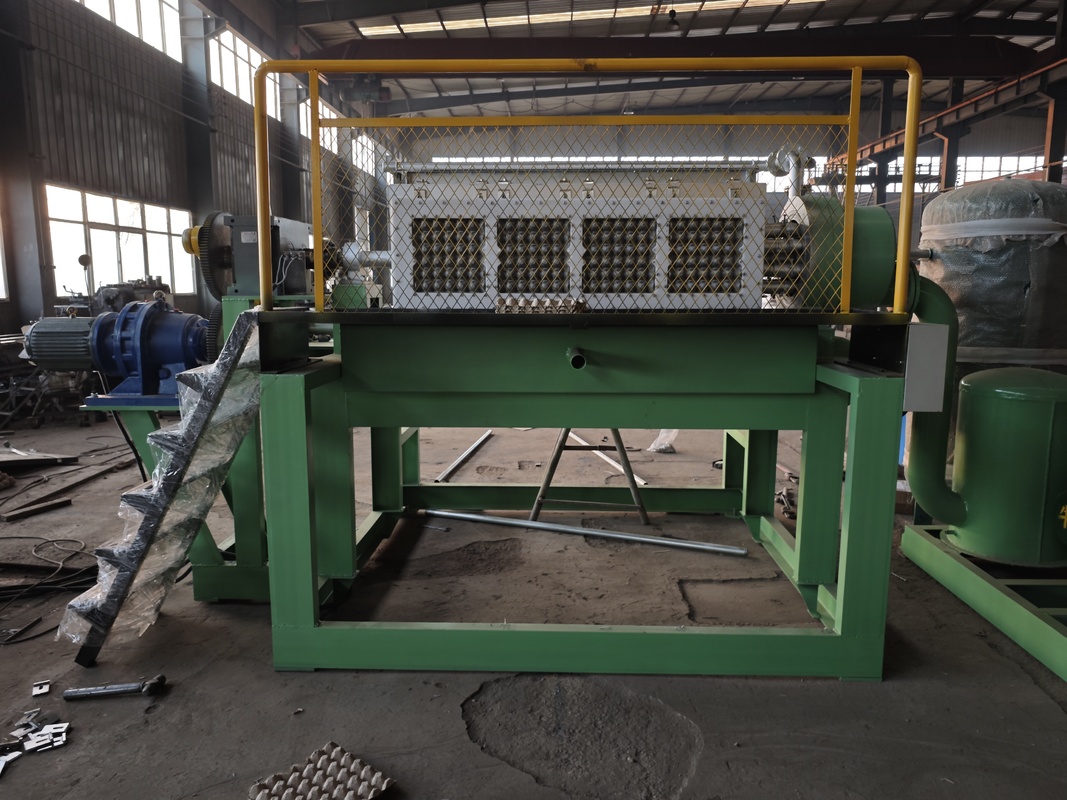

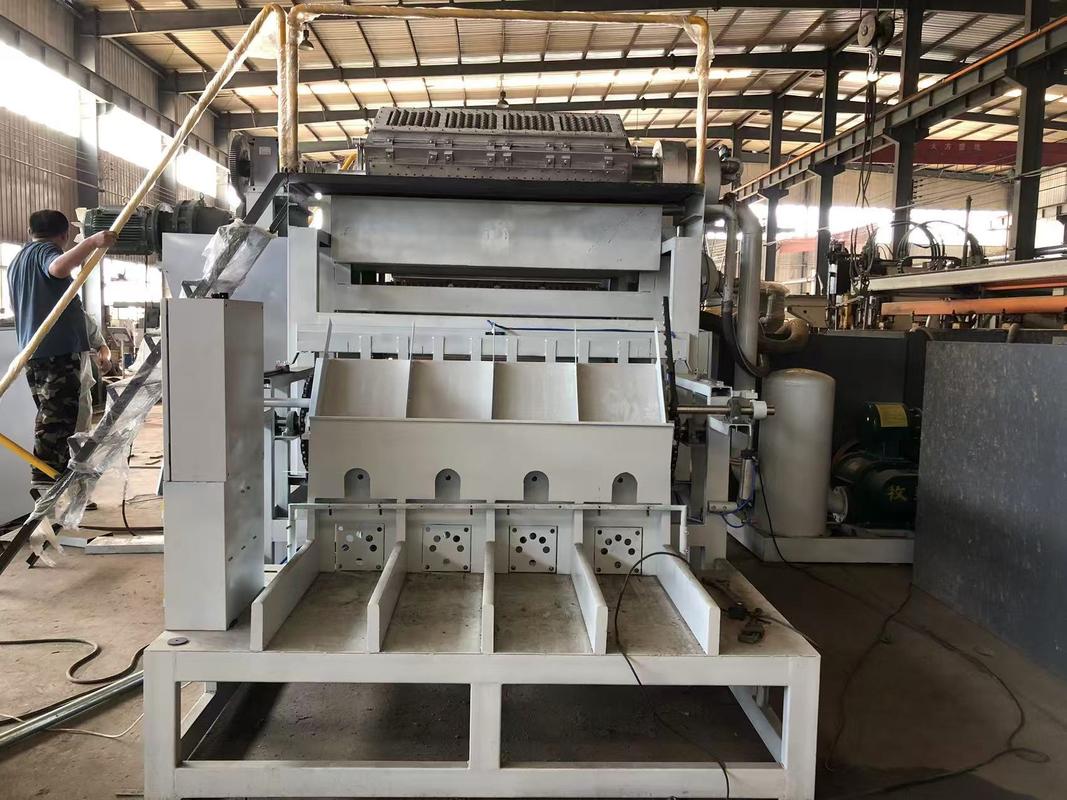

  2forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.


3 molds paper egg tray machine forming part 1000pcs/h capacity

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 1


Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 2

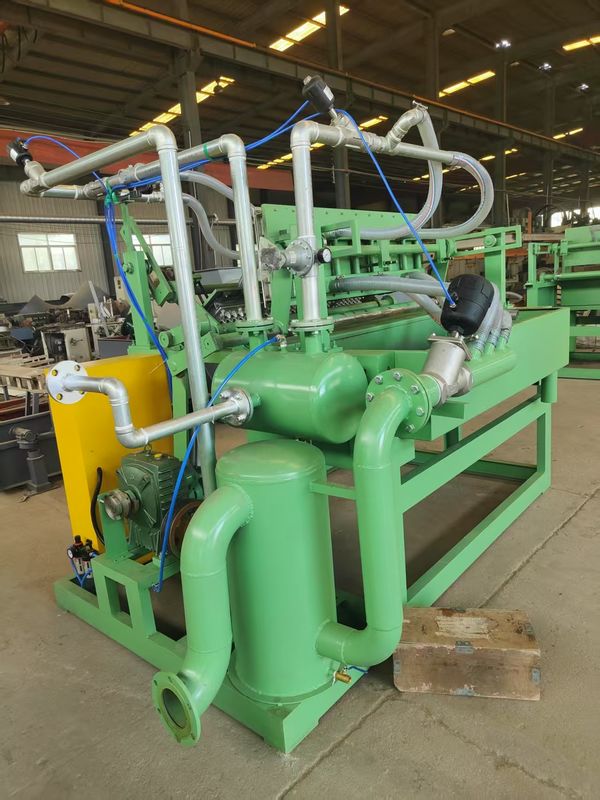

Simple structure egg tray machine with cheaper investment

1*2 molds paper egg tray machine 700pcs/h capacity forming part

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 3

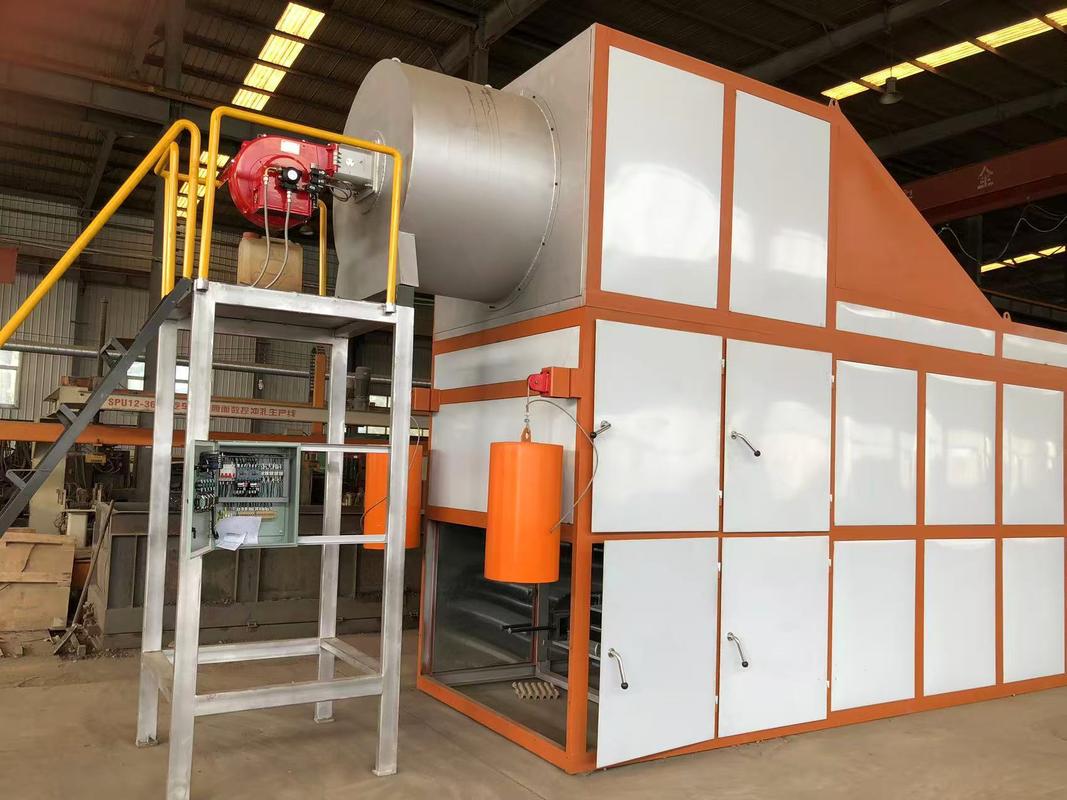

3. Dryer system for egg tray machine( Optional for customer)

Metalic dryer model (4 layers, 6 layers, customized as per customer's needs) for egg tray machine

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 4

Heat source (fuel) for egg tray machine dryer: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

Various capacity egg tray machine / egg tray production line we can make

Egg tray mould quantity

1pcs

2pcs

3pcs

4pcs

Raw material

Waste paper

Waste paper

Waste paper

Waste paper

Output for egg tray

350pcs/hour

700pcs/hour

1000pcs/hour

1300pcs/hour

Net weight per piece (gram)

70g-75g

70g-75g

70g-75g

70g-75g

The volume of waste paper consumed

0.025ton / hour

0.06ton / hour

0.1ton / hour

0.13ton / hour

The volume of water consumed

0.05ton / hour



0.15ton / hour

0.2ton / hour

Operators number

2-3workers

3-4workers

4-6workers

4-6workers

Area of workshop

More than 200M²

More than 240M²

More than 240M²

More than 240M²

Capacity of power

25KW

40KW

50KW

60KW

1000pcs/h capacity 3 molds egg tray machine technical data

Egg Tray Mold Quantity

3pcs

Raw material

Waste paper

Egg tray Capacity

1000pcs/hour

Net weight per piece (gram)

70g-75g

Waste paper consumption

75kg / hour

Water Consumption

0.15ton / hour

Natural Gas Consumption of Dryer

35cbm/h

Worker requirement

4-6workers

Machine Length

7m-25m

Machine weight

8-20tons

Power Requirement

Without dryer

40KW

With dryer

60KW

Area of workshop

Without dryer

More than 120 M²

With dryer, dryer-16m

More than300M²

Container Requirement

Without dryer

40ft*1

With dryer

40ft*3

Remarks:

1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).

2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

End product of paper egg tray machine

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 5


Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 6

Low Energy Consumption Automatic Paper Egg Tray Packaging Machine and Pulp Molding Machine with Dryer Metallic Dryer Simple Design 7

Payment Terms

Delivery Time: 40 working days after getting payment

Payment Terms: 40% T/T prepayment in advance.

               60% before delivery by T/T.

Warranty time

1year after the Egg tray machine received.

Terms of delivery

EXW Jinan, China

Time of payment

When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
